Sega SG-1000 (エスジー・セン)

Following my post about the first Nintendo console, here is the first Sega console.

It was in 1983 that this website’s co-namesake entered the home video game market, with their first machine, the Sega SG-1000.SG1000_4408

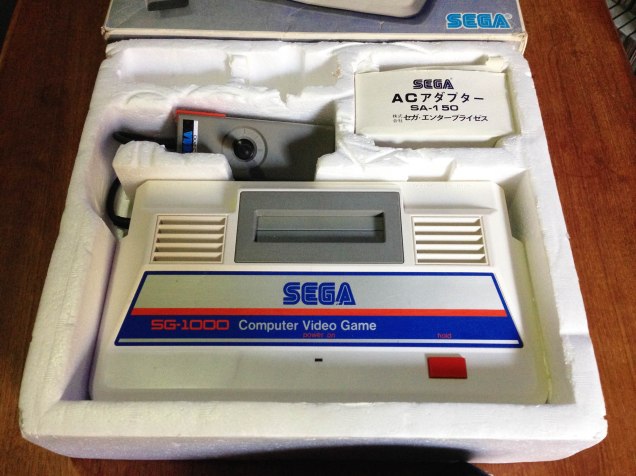

Released the same month as the Famicom (some sources claim the same day), it was a generation behind it in technology and design, featuring performance equivalent to the ColecoVision and first generation MSX. Sega couldn’t have predicted hurricane Famicom was about to redefine video games.

SG1000_4409

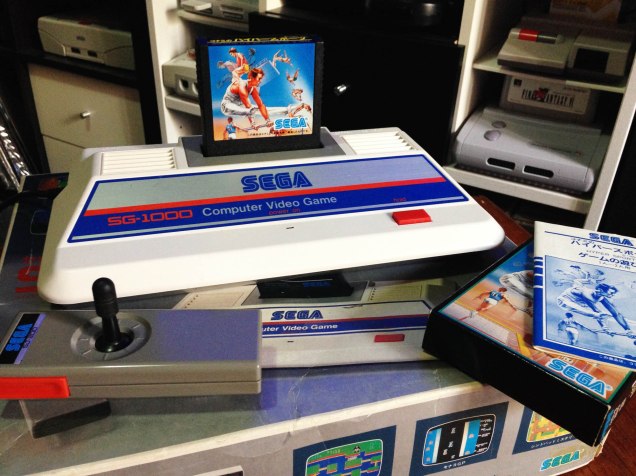

It plays Atari-style tall cassettes (cartridges), and features and Atari style joystick which is tethered  to the left of the console.

SG1000_4411

The back features a port to attach a keyboard. ‘Home computer’ versions of the hardware with the keyboard integrated were released as the Sega SC-3000.

SG1000_4416

It can also play Sega My Card software (like Dragon Wang here) with the ‘Card Catcher’ adapter, which was released to coincide with the launch of the SG-1000 II a year later.

SG1000_4417

About that SJ-200 joystick – it’s pretty awful. Very similar in responsiveness to an original Atari VCS joystick, but with a worse design. Both the joystick and buttons are stiff and unresponsive, even in a perfectly working controller. Inside it uses a primitive bending metal ‘leaf connector’ system, which was cheap but no substitute for the microswitches in arcade joysticks, or the innovative rubber membrane system Nintendo utilised in its Game & Watch series and brought to the Famicom.

SG1000_4413

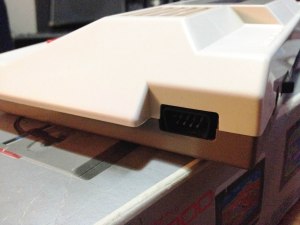

On the right of the console there’s a standard Sega controller connector plug, which unfortunately is only for player 2. Sega actually released an adapter that allowed you to open the console and replace the player 1 SJ-200 with another controller port, but it’s apparently impossible to find. I might try and make up a home-made one to use Mark III controllers.

SG1000_9

Size-wise it’s comparable to a Mark III, and deceptively flat.

SG1000_4426  SG1000_4429

SG1000_4423

Output is RF-only, which means a classic fuzzy picture, if you can even tune it in (depending on where you live).

SG1000_5
The Konami game ‘High School Graffiti: Mikie’ where you play as a teen heart throb, to the tune of Beatles classics.

It’s a pretty cool collector piece, but due to the joystick and RF-only output is not the best choice to actually play on. The Mark III is fully backward compatible with SG-1000 games, has the card slot built in, and (with a bit of ingenuity) has very nice RGB graphics output.
